970–78 Harley 24563-70 Shovelhead Left Case OEM Reweld Project FL FX

Description

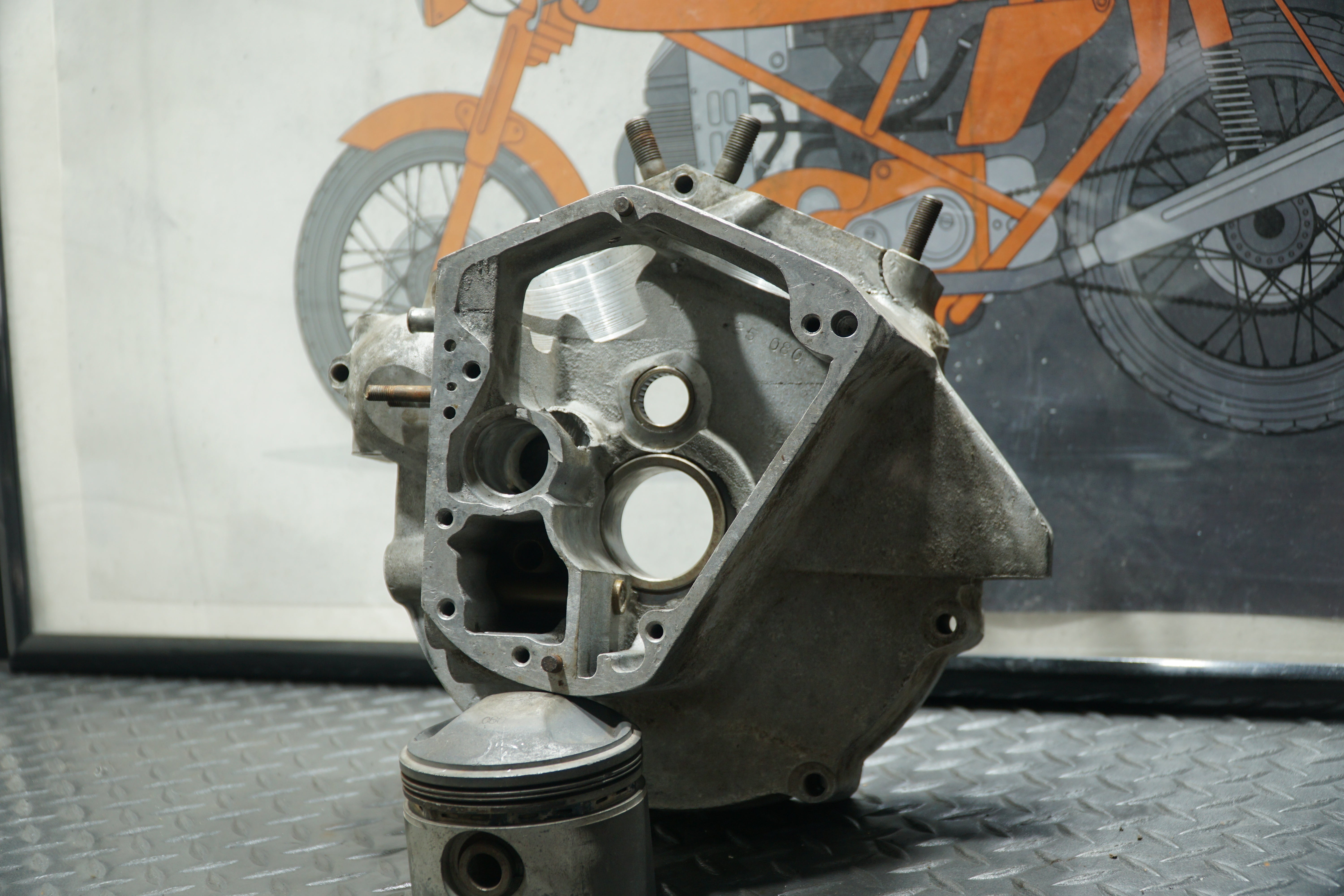

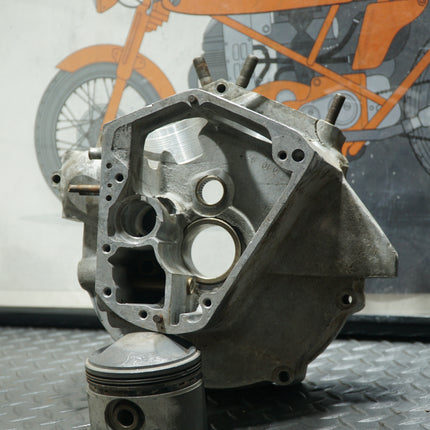

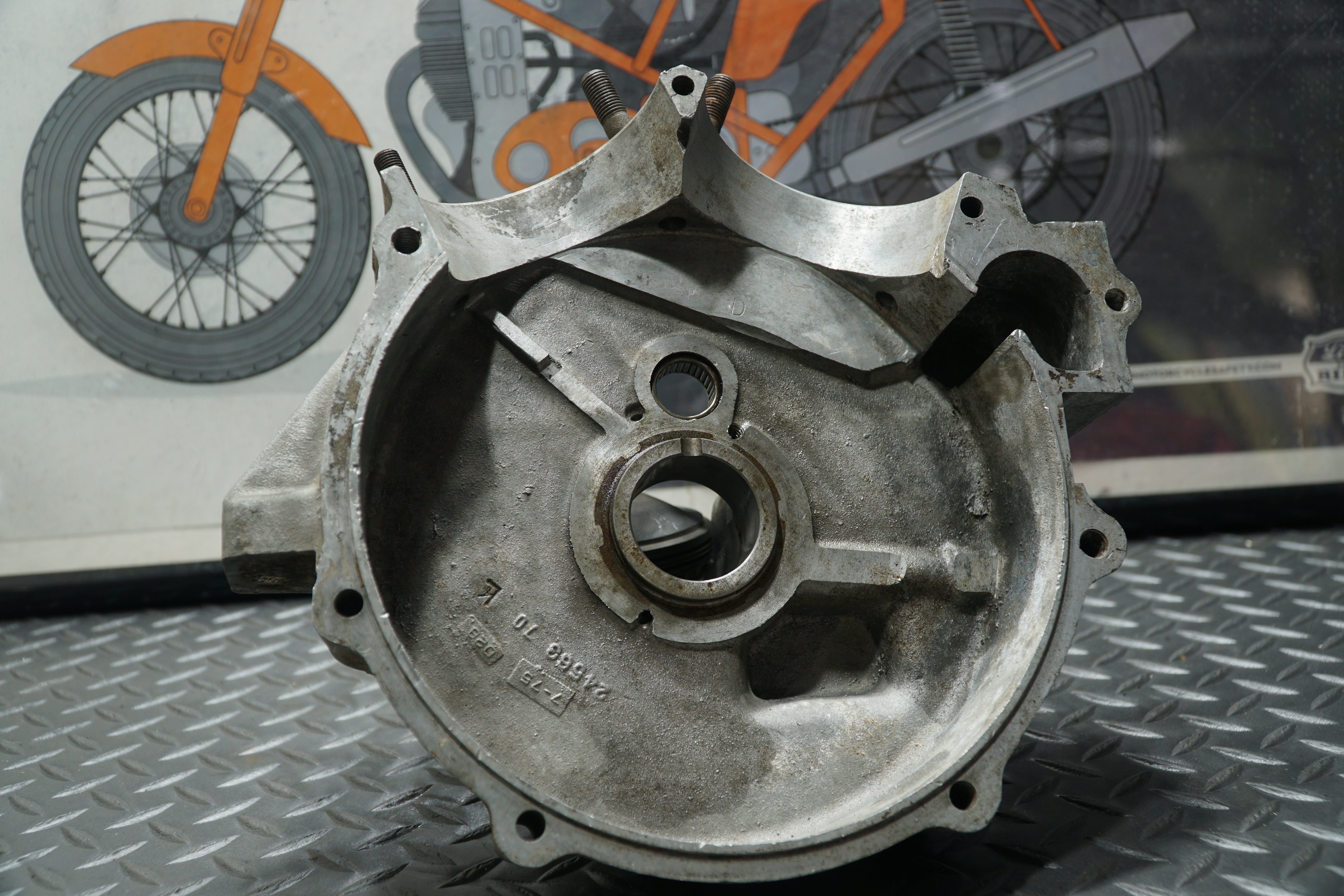

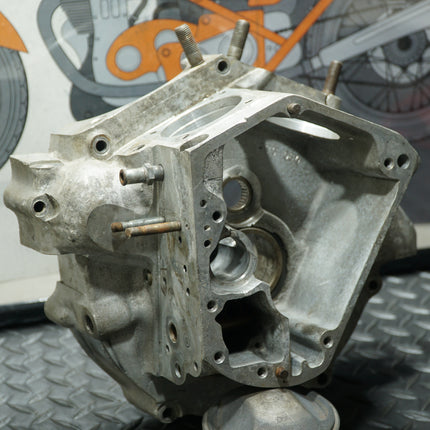

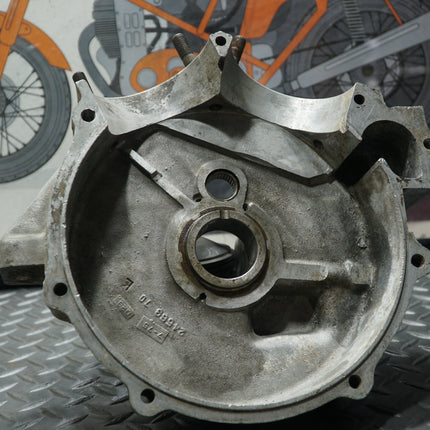

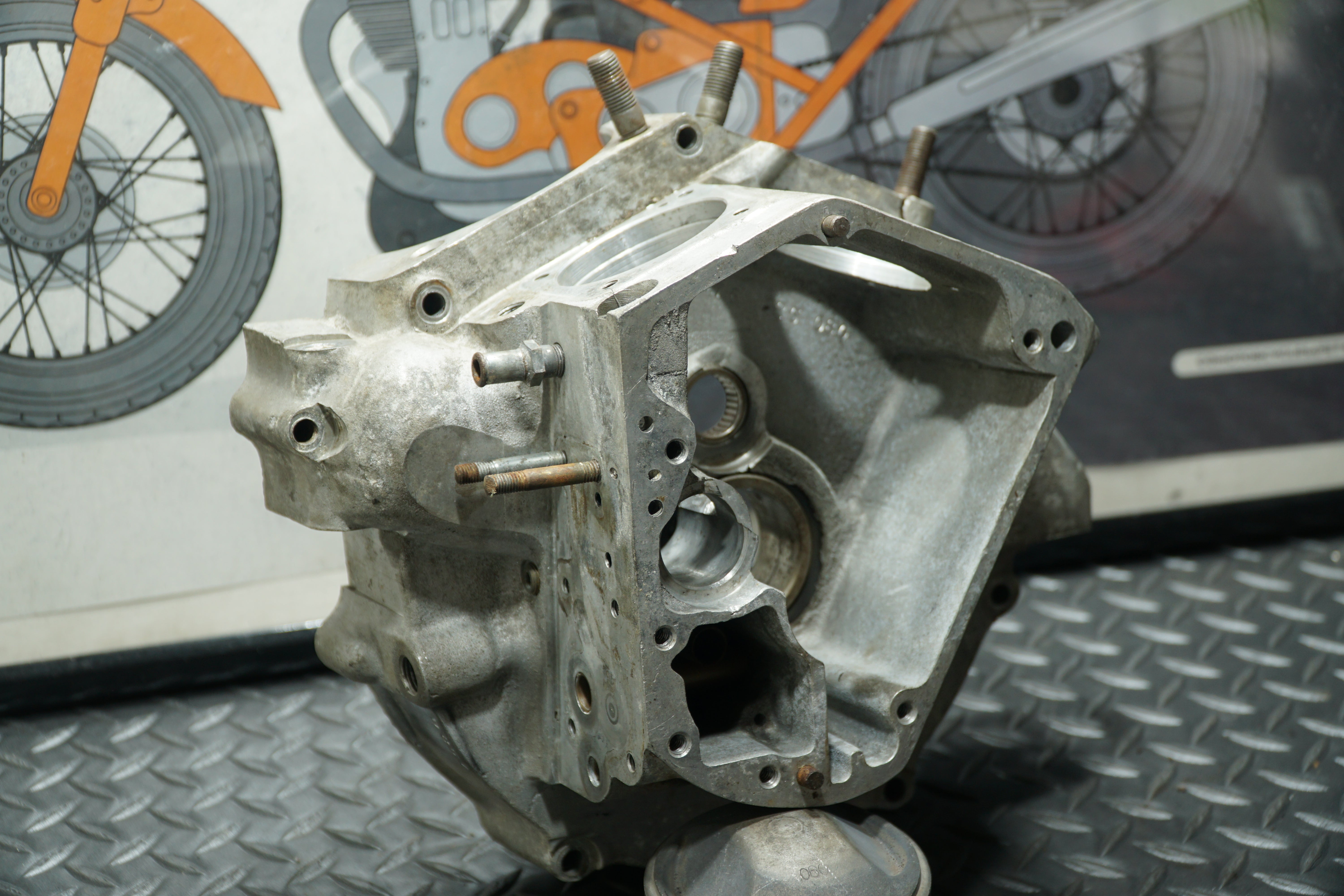

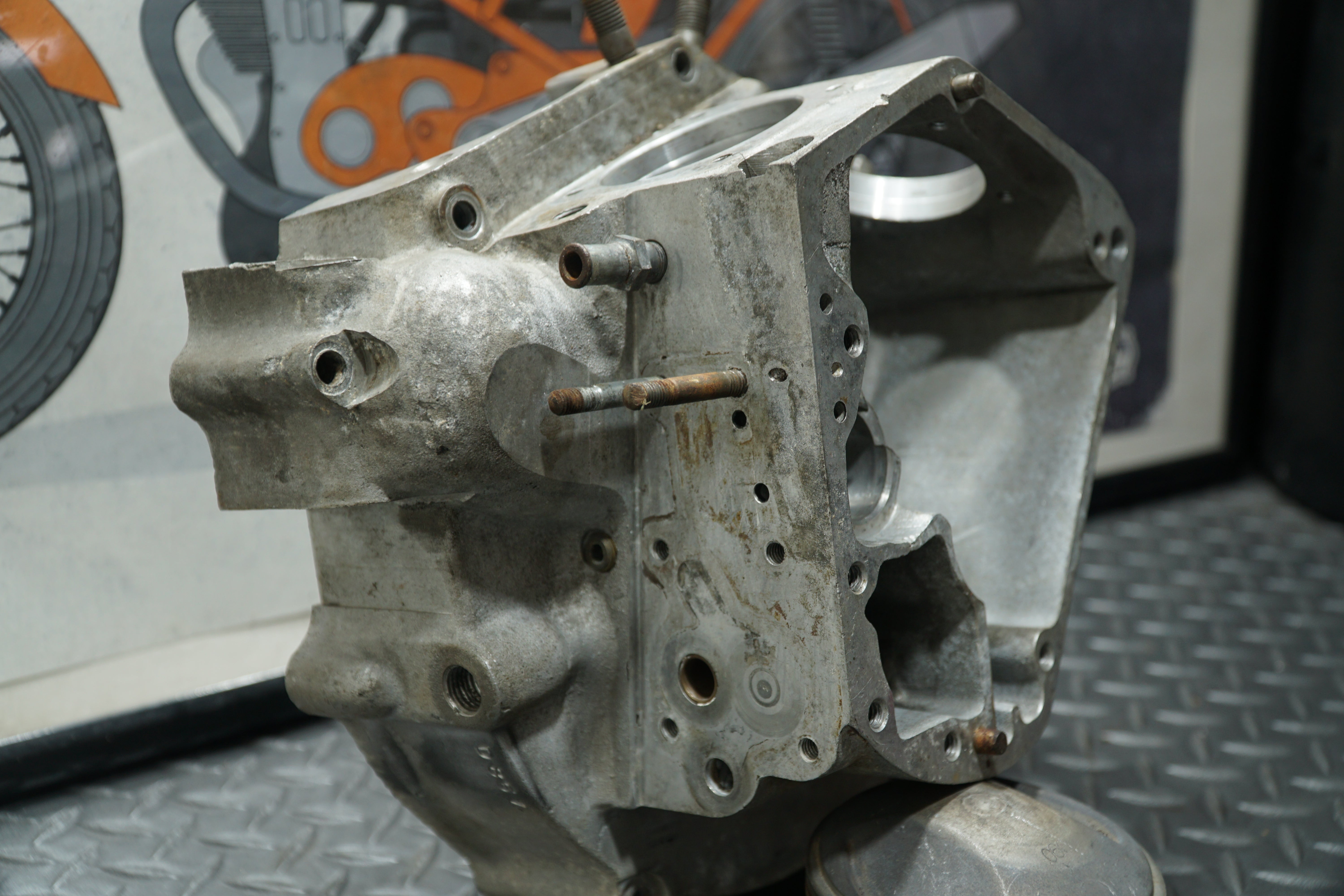

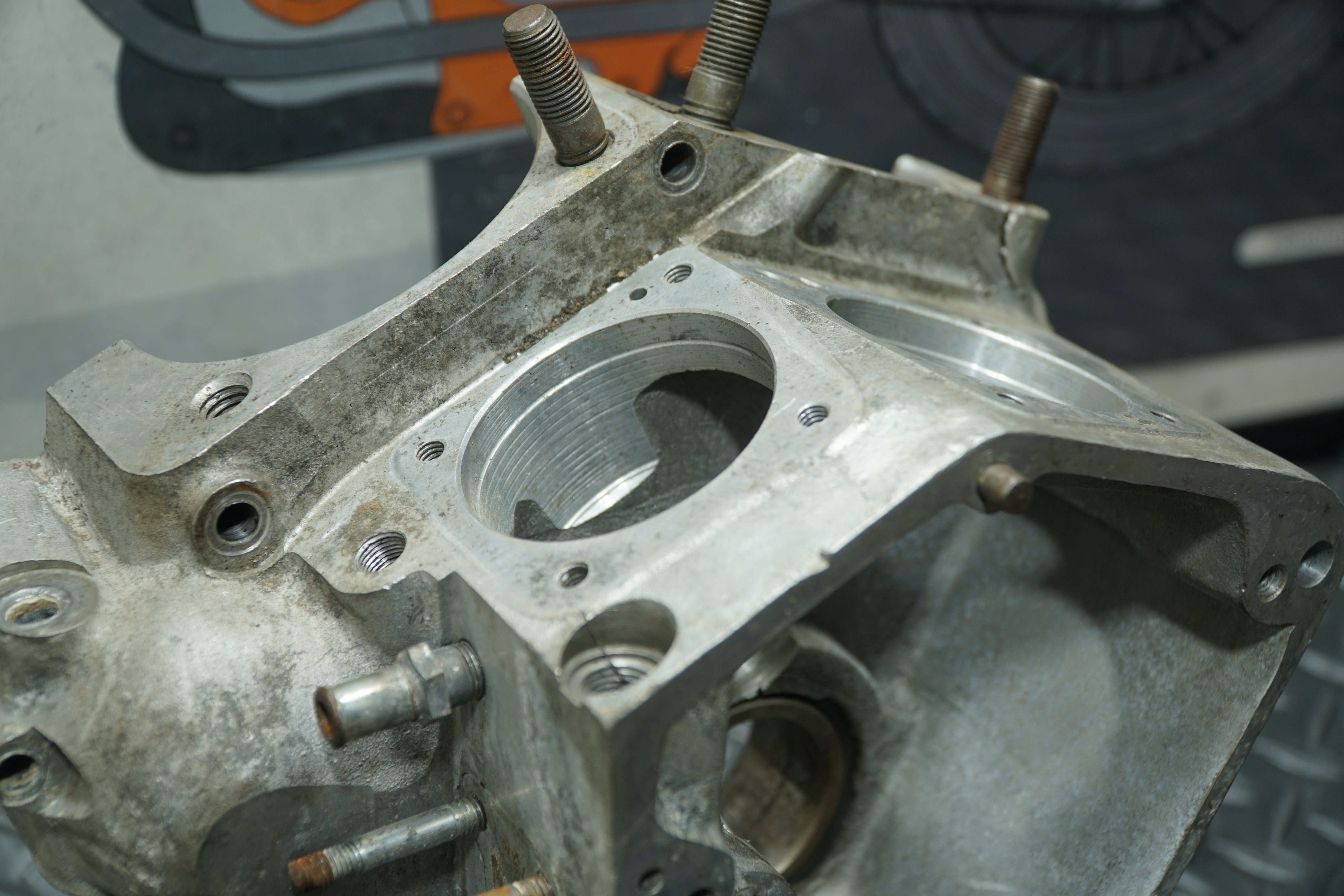

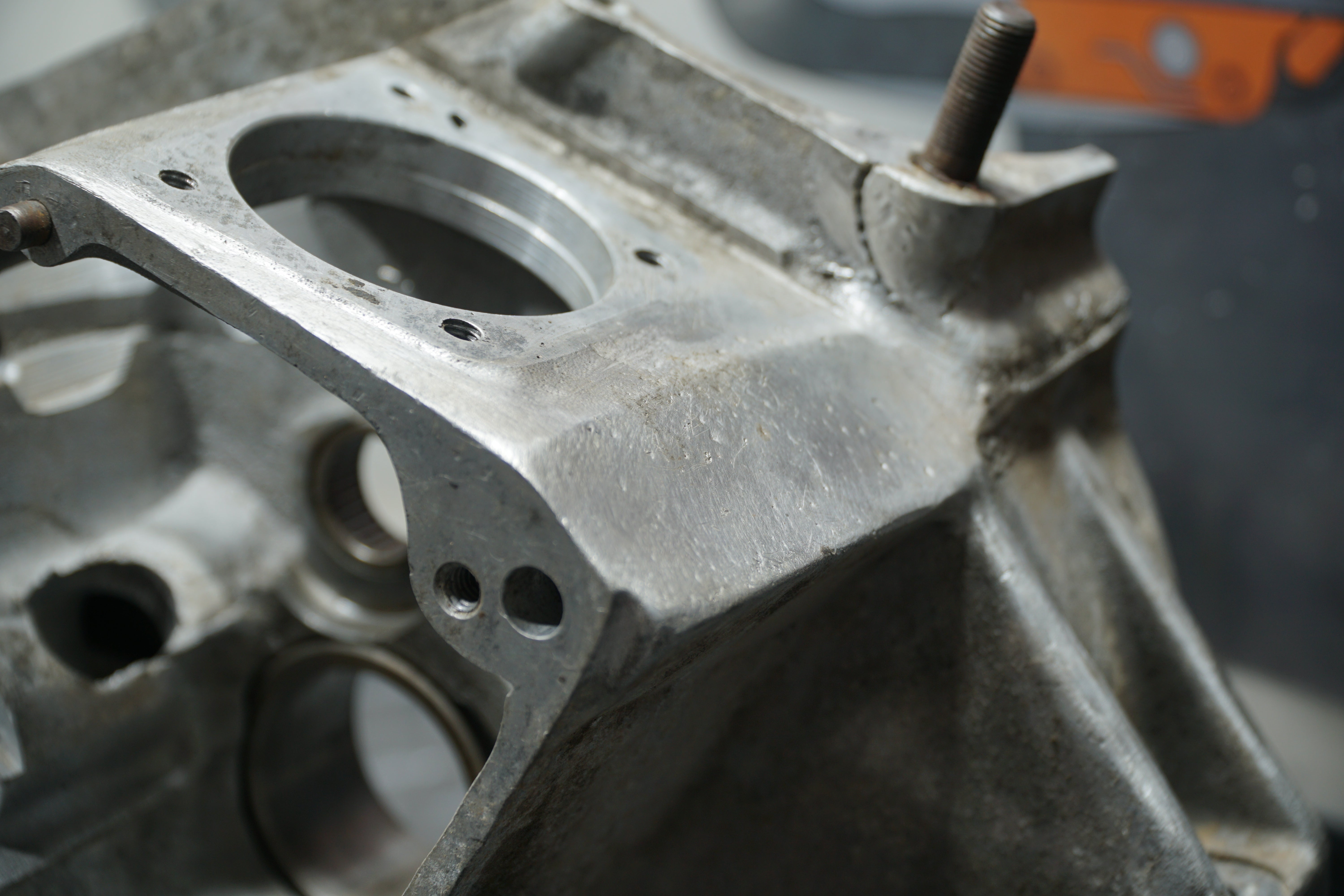

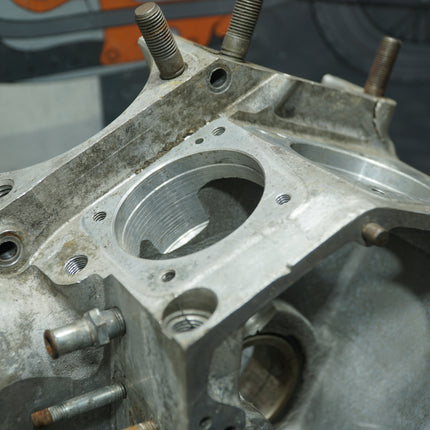

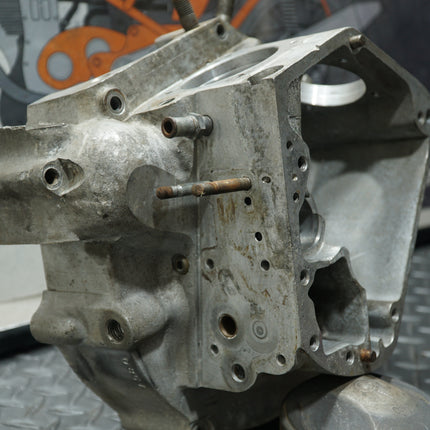

OEM Harley-Davidson left-side crankcase for 1970–1978 74” Shovelhead Big Twin models, part number 24563-70. This factory-cast aluminum case is correct for FL, FLH, and FX models with the 1200cc Shovelhead motor.

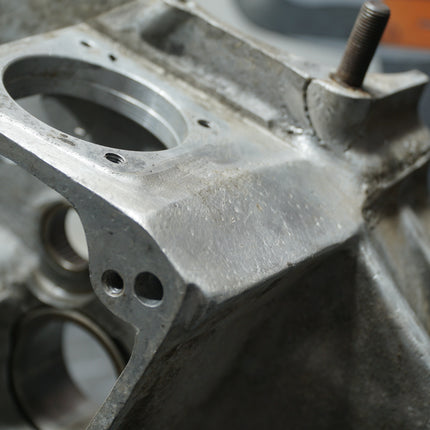

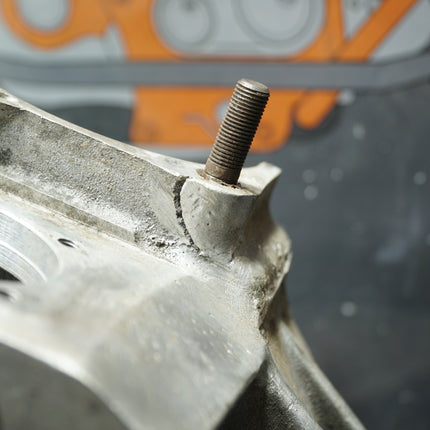

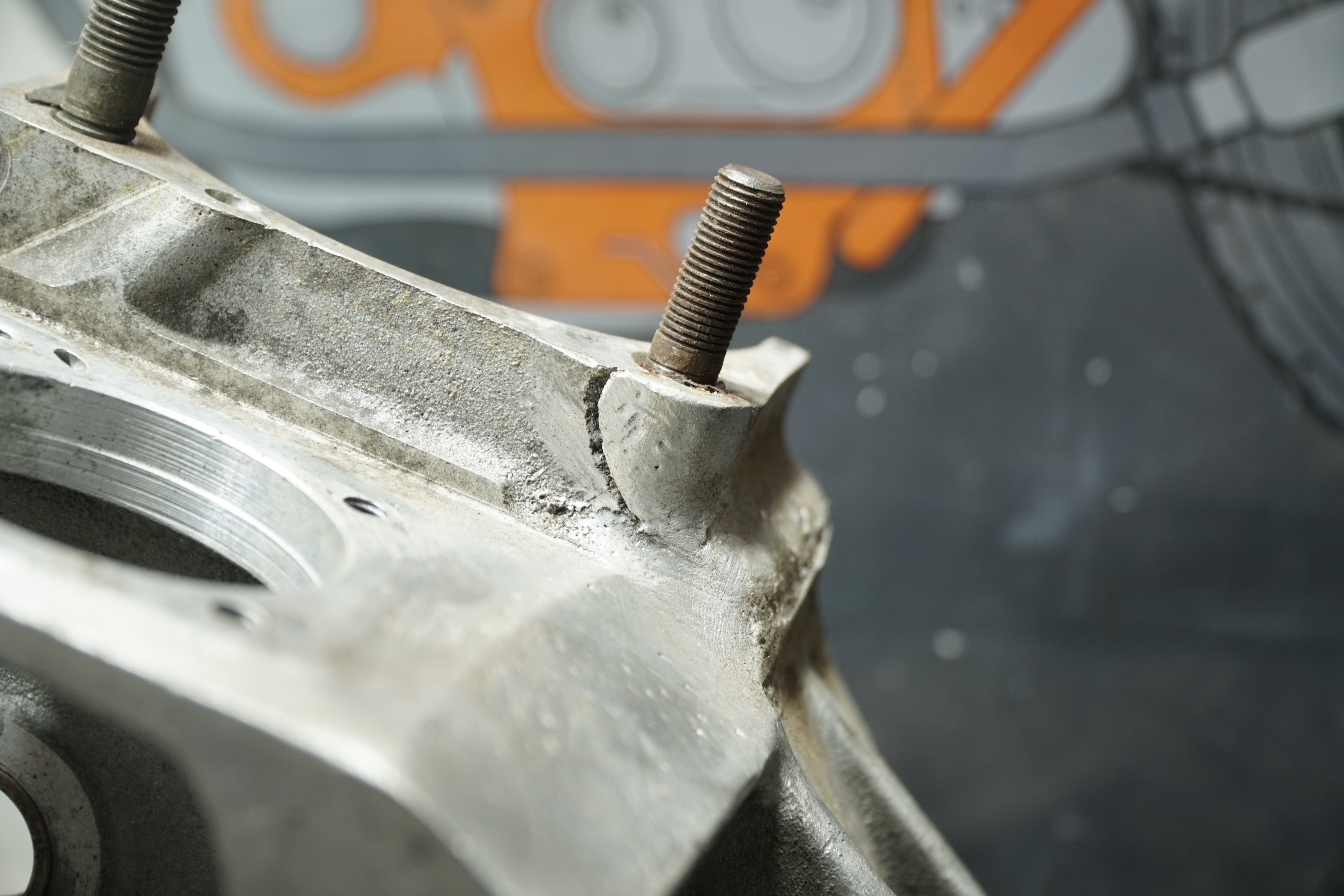

This is a great candidate for a builder or restorer — a small corner near one of the head stud bosses has been partially repaired and needs finishing (see images). The structural repair was started with welding and will need to be completed and dressed. No signs of major damage elsewhere. Threads and mating surfaces appear restorable.


This case does not display a motor number or identification stamp in the usual area — ideal for custom or replacement builds. Sold as shown for parts or repair. May need machine work or final prep before assembly.


OEM Part Number:



  • 24563-70




Fits the following Harley-Davidson models (Shovelhead 74” 1200cc):



  • 1970–1978 FL

  • 1970–1978 FLH

  • 1970–1978 FX




Specs:



  • Engine: 74” Shovelhead

  • Material: Cast aluminum

  • Side: Left

  • Condition: Used, with repair in progress

  • VIN Pad: Blank/unstamped

  • Notes: Rewelded corner near head studs, needs completion



970–78 Harley 24563-70 Shovelhead Left Case OEM Reweld Project FL FX

Product form

OEM Harley-Davidson left-side crankcase for 1970–1978 74” Shovelhead Big Twin models, part number 24563-70. This factory-cast aluminum case is correct... Read more

Out of stock

$100.00

      Description

      OEM Harley-Davidson left-side crankcase for 1970–1978 74” Shovelhead Big Twin models, part number 24563-70. This factory-cast aluminum case is correct for FL, FLH, and FX models with the 1200cc Shovelhead motor.


      This is a great candidate for a builder or restorer — a small corner near one of the head stud bosses has been partially repaired and needs finishing (see images). The structural repair was started with welding and will need to be completed and dressed. No signs of major damage elsewhere. Threads and mating surfaces appear restorable.


      This case does not display a motor number or identification stamp in the usual area — ideal for custom or replacement builds. Sold as shown for parts or repair. May need machine work or final prep before assembly.


      OEM Part Number:



      • 24563-70




      Fits the following Harley-Davidson models (Shovelhead 74” 1200cc):



      • 1970–1978 FL

      • 1970–1978 FLH

      • 1970–1978 FX




      Specs:



      • Engine: 74” Shovelhead

      • Material: Cast aluminum

      • Side: Left

      • Condition: Used, with repair in progress

      • VIN Pad: Blank/unstamped

      • Notes: Rewelded corner near head studs, needs completion
