Harley Ironhead Sportster Oil Pump Base Plate 26204-77A Used OEM 1000

Swipe photos

Part photos

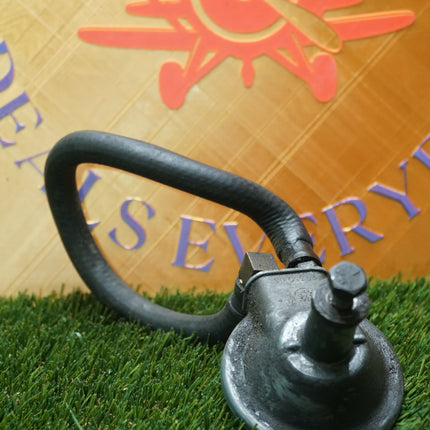

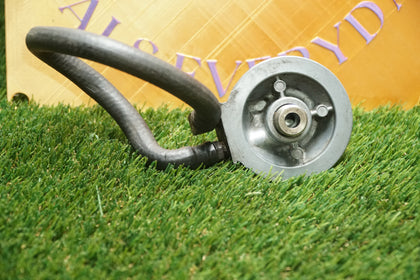

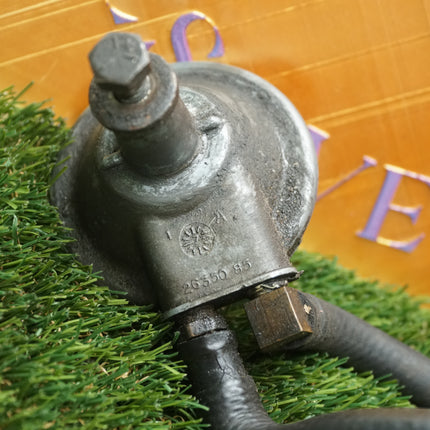

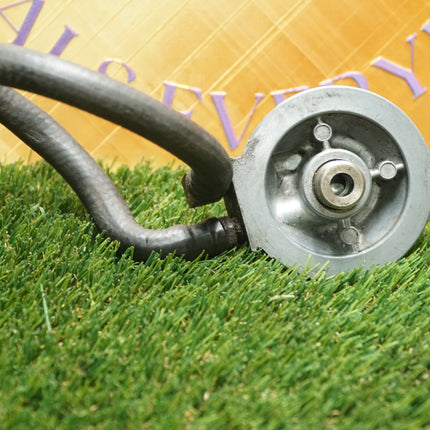

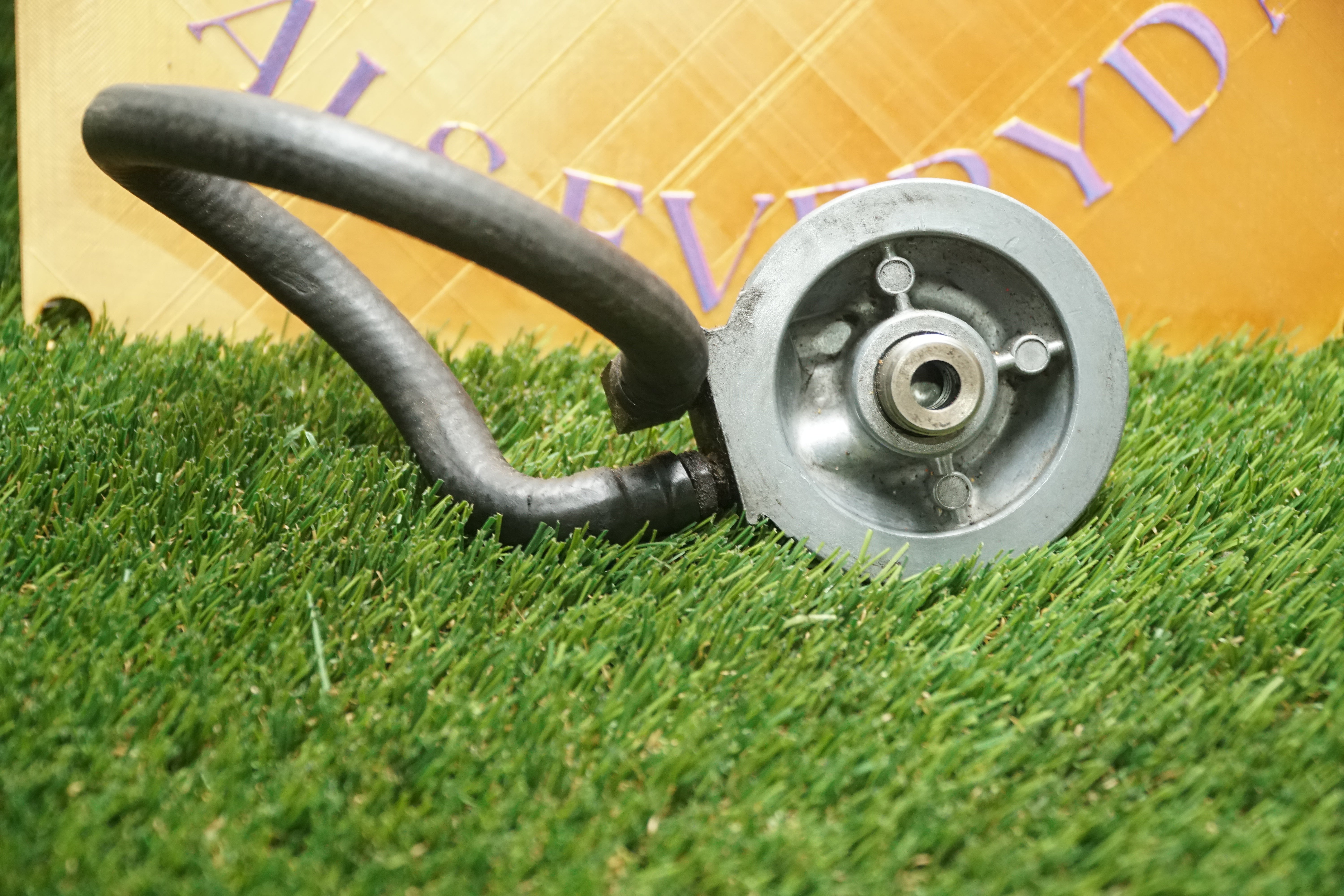

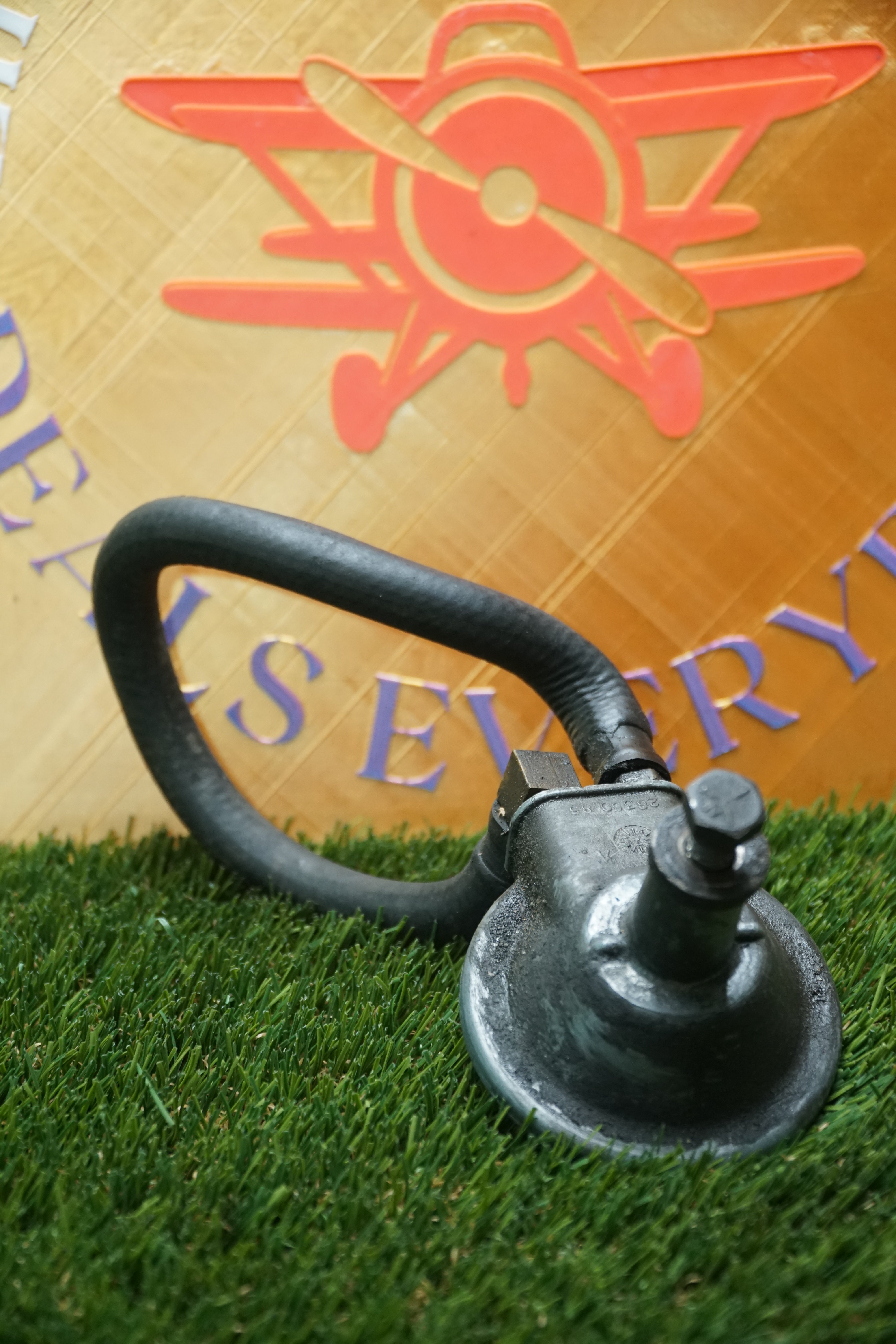

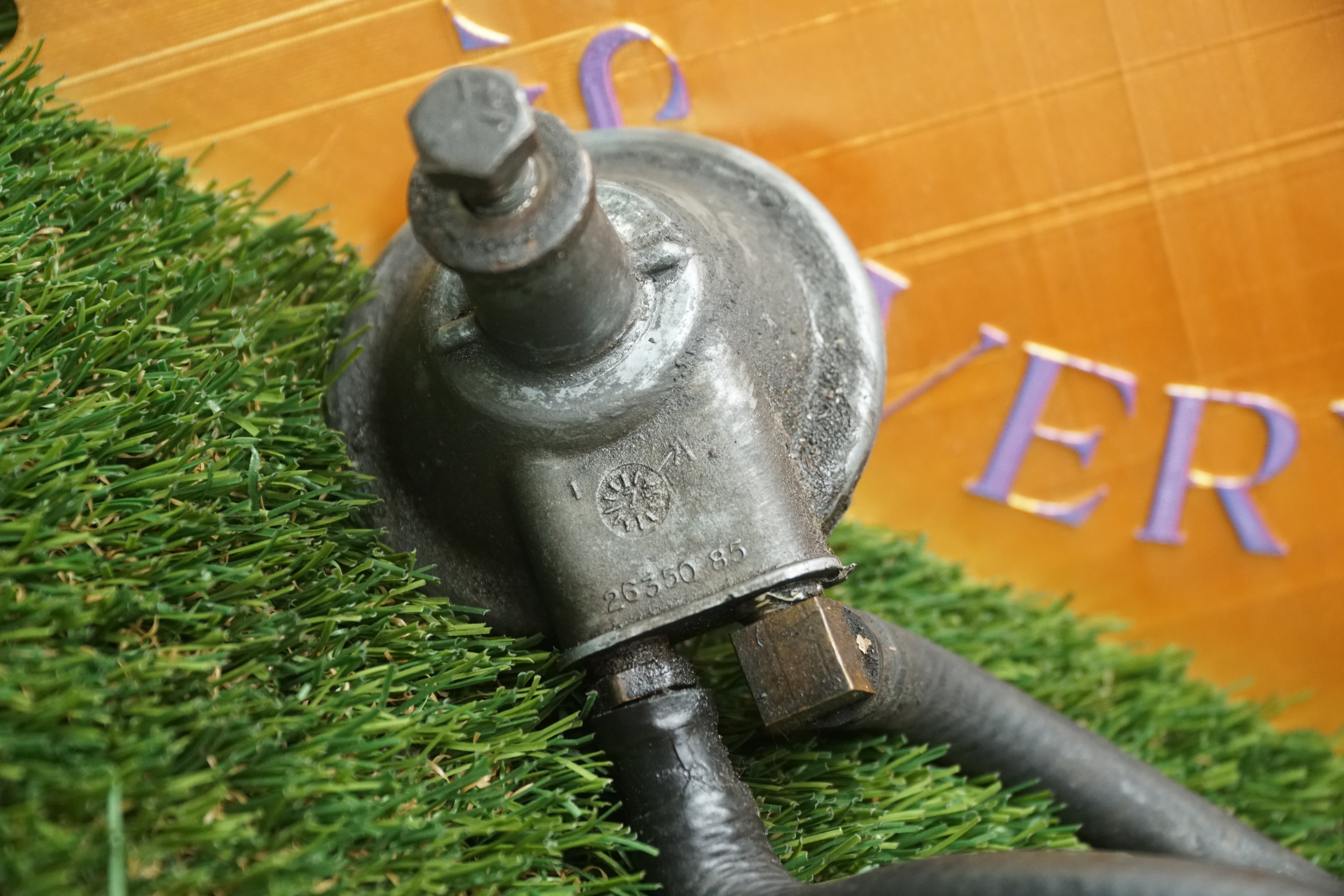

Harley Ironhead Sportster Oil Pump Base Plate 26204-77A Used OEM 1000 photo 1 Harley Ironhead Sportster Oil Pump Base Plate 26204-77A Used OEM 1000 photo 2 Harley Ironhead Sportster Oil Pump Base Plate 26204-77A Used OEM 1000 photo 3

Description

  • Condition Details: Great vintage rider-grade pre-owned survivor condition. The cast aluminum lower plate mating face, central mainshaft sleeve bore, and three surrounding alignment screw eyelets are 100% solid, flat, crack-free, and un-warped with zero deep tool gouges or scoring. The pre-installed oil loop bypass hose line is fully flexible and tightly anchored inside its barb fittings with no dry-rot cracking or leaks as pictured. Cleaned, dry, and completely ready to bolt straight into your oiling rebuild.
Platform Fitment Bounds: Direct factory replacement maintenance casting or safety engine overhaul plate designed explicitly for conventional gearcase lower oil lines on late-construction classic 1977 to 1985 Harley-Davidson Ironhead Sportster models:
  • 1977–1985 Harley-Davidson Sportster XLH 1000 Roadster / Touring / Deluxe Electric Start Platforms
  • 1977–1979 Harley-Davidson Sportster XLCH 1000 Kick Start Configurations
  • 1983–1984 Harley-Davidson Sportster XR1000 Street Tracker Platforms
  • Note: Precision engineered strictly for the updated late-era 1000cc Ironhead engine case revisions running the aluminum pump styles (#26204-77A); does not fit early 1957–1976 900cc/1000cc cases which ran the old-style zinc die-cast oil pumps (#26207-67A).

Harley Ironhead Sportster Oil Pump Base Plate 26204-77A Used OEM 1000

Product form

Condition Details: Great vintage rider-grade pre-owned survivor condition. The cast aluminum lower plate mating face, central mainshaft sleeve bore, and... Read more

1 in stock

$24.95

      Description

      • Condition Details: Great vintage rider-grade pre-owned survivor condition. The cast aluminum lower plate mating face, central mainshaft sleeve bore, and three surrounding alignment screw eyelets are 100% solid, flat, crack-free, and un-warped with zero deep tool gouges or scoring. The pre-installed oil loop bypass hose line is fully flexible and tightly anchored inside its barb fittings with no dry-rot cracking or leaks as pictured. Cleaned, dry, and completely ready to bolt straight into your oiling rebuild.
      Platform Fitment Bounds: Direct factory replacement maintenance casting or safety engine overhaul plate designed explicitly for conventional gearcase lower oil lines on late-construction classic 1977 to 1985 Harley-Davidson Ironhead Sportster models:
      • 1977–1985 Harley-Davidson Sportster XLH 1000 Roadster / Touring / Deluxe Electric Start Platforms
      • 1977–1979 Harley-Davidson Sportster XLCH 1000 Kick Start Configurations
      • 1983–1984 Harley-Davidson Sportster XR1000 Street Tracker Platforms
      • Note: Precision engineered strictly for the updated late-era 1000cc Ironhead engine case revisions running the aluminum pump styles (#26204-77A); does not fit early 1957–1976 900cc/1000cc cases which ran the old-style zinc die-cast oil pumps (#26207-67A).
