Harley Evo 5 Speed Transmission Trap Door 35075-87 Parts Core Broken Gears

Swipe photos

Part photos

Harley Evo 5 Speed Transmission Trap Door 35075-87 Parts Core Broken Gears photo 1 Harley Evo 5 Speed Transmission Trap Door 35075-87 Parts Core Broken Gears photo 2 Harley Evo 5 Speed Transmission Trap Door 35075-87 Parts Core Broken Gears photo 3 Harley Evo 5 Speed Transmission Trap Door 35075-87 Parts Core Broken Gears photo 4 Harley Evo 5 Speed Transmission Trap Door 35075-87 Parts Core Broken Gears photo 5 Harley Evo 5 Speed Transmission Trap Door 35075-87 Parts Core Broken Gears photo 6

Description

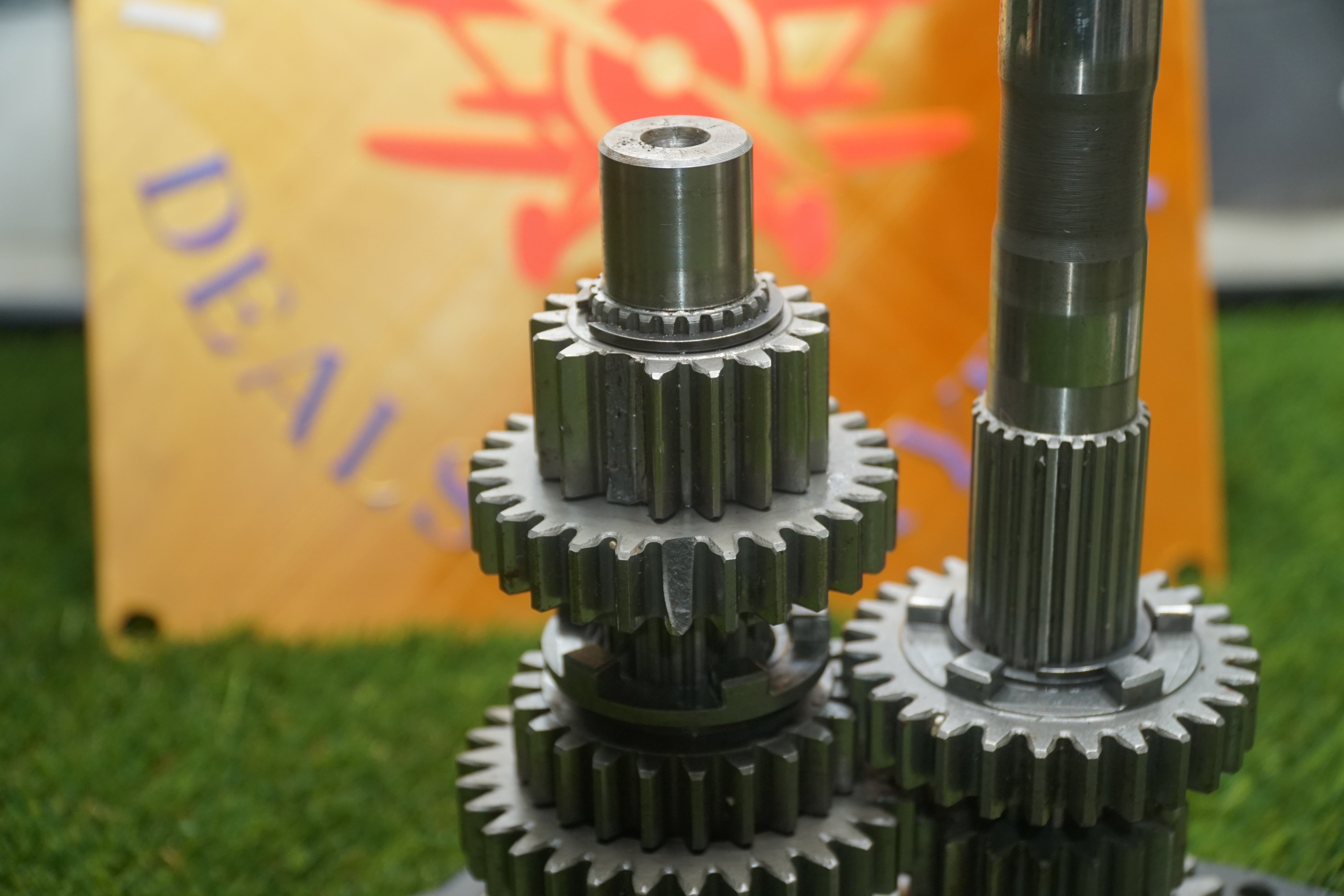

This is a genuine Harley-Davidson factory original OEM 5-speed transmission internal gear cluster salvage core. Sourced from a 1987–1990 Evolution Big Twin, this assembly is being sold strictly for parts, repair, or scrap core value.
CRITICAL CONDITION NOTES:
  • Missing Components: The assembly is incomplete and completely missing the final drive main gear(4th gear mainshaft assembly).

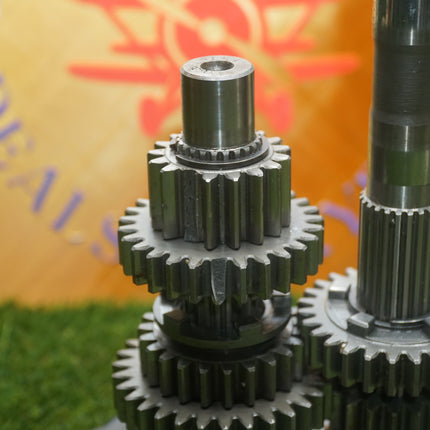

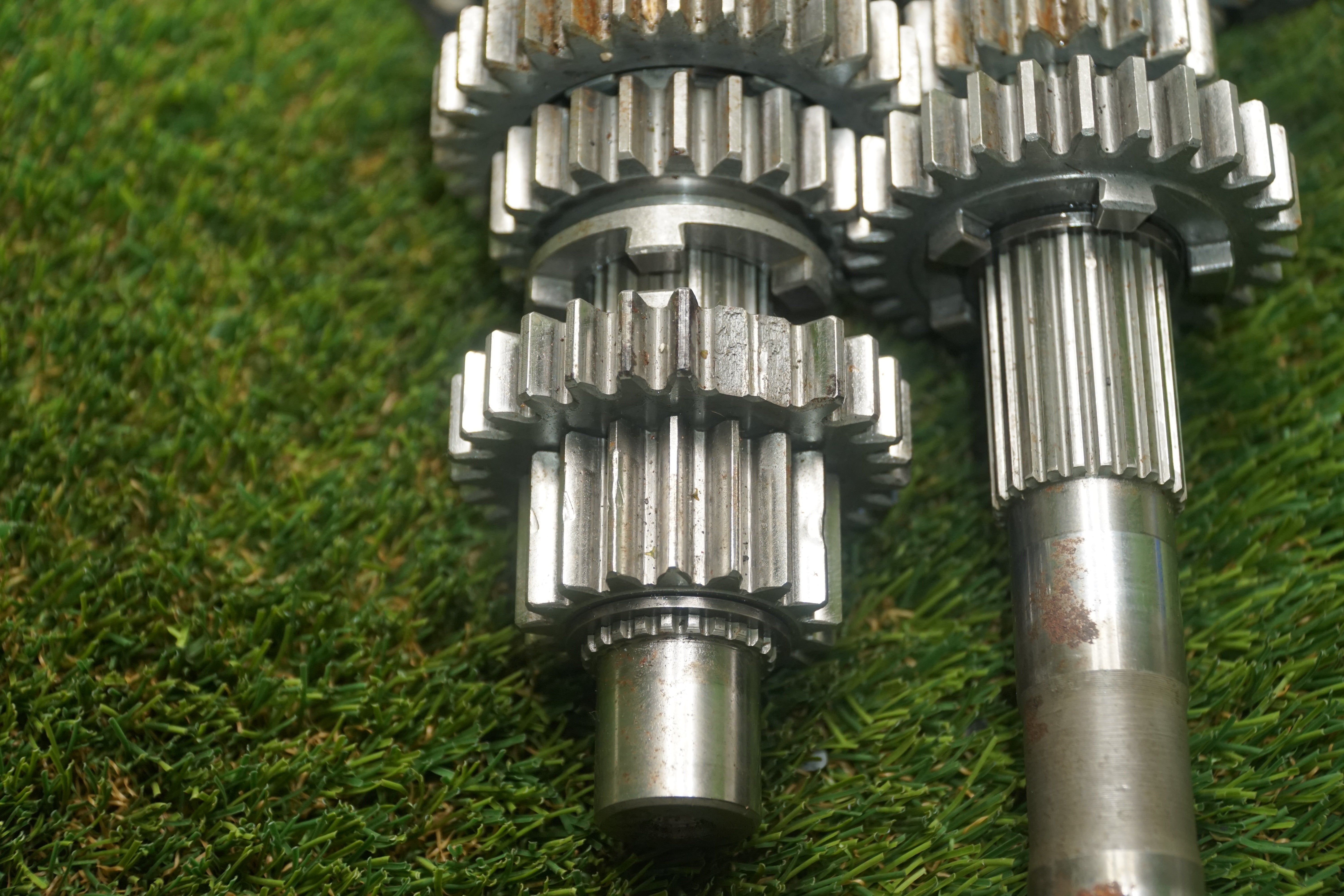

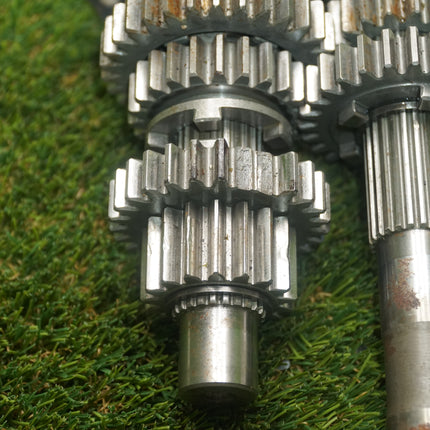

  • Mechanical Damage: The visible gear teeth profiles show severe failure, including chipped, sheared, and completely broken gear teeth along the internal clusters.

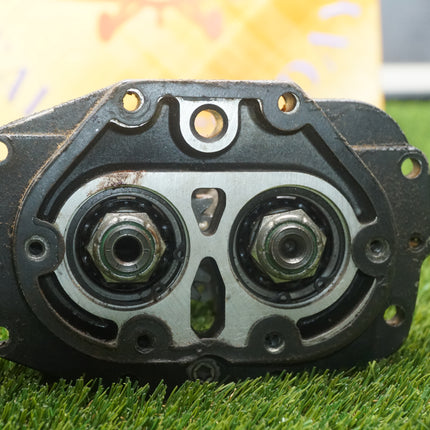

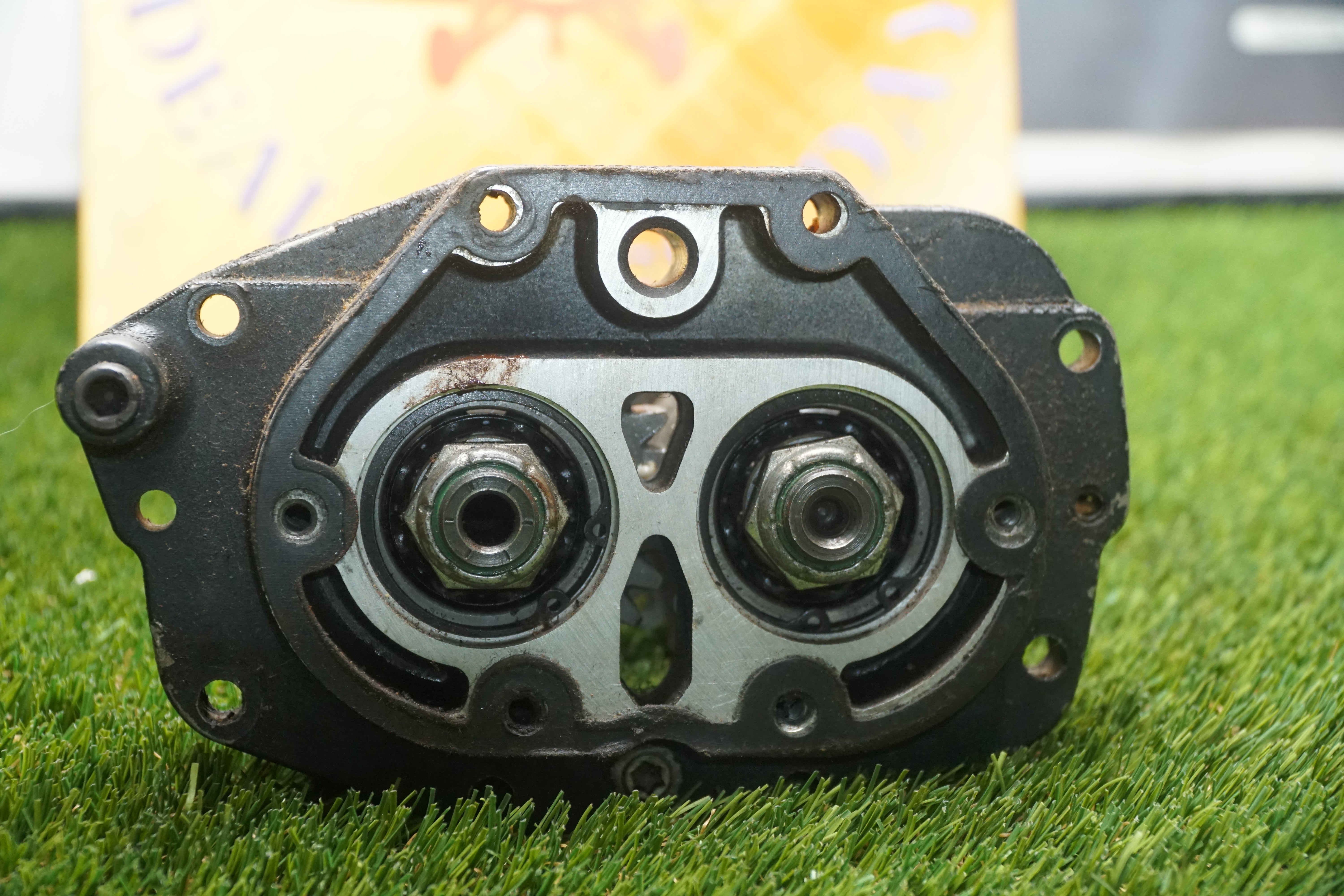

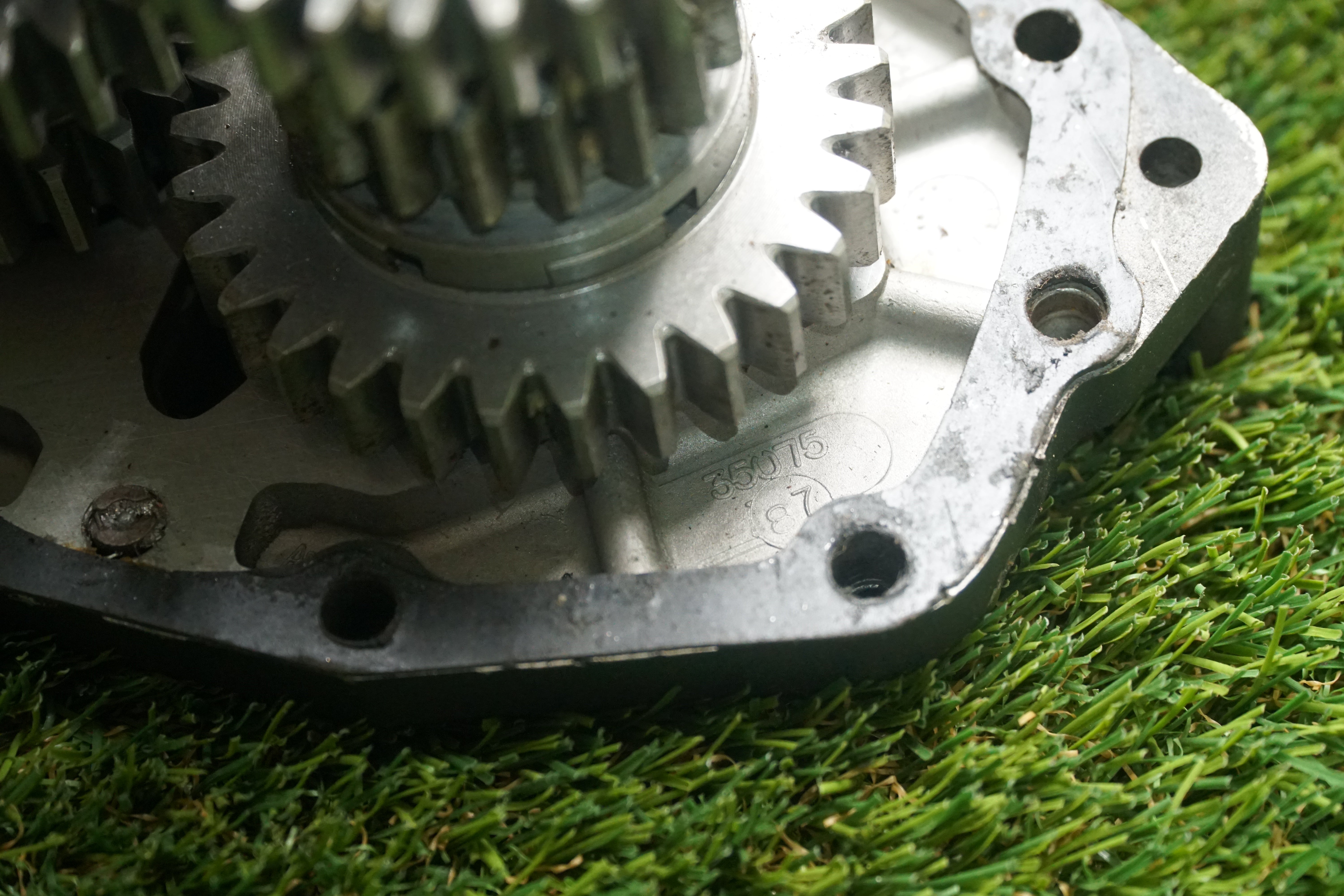

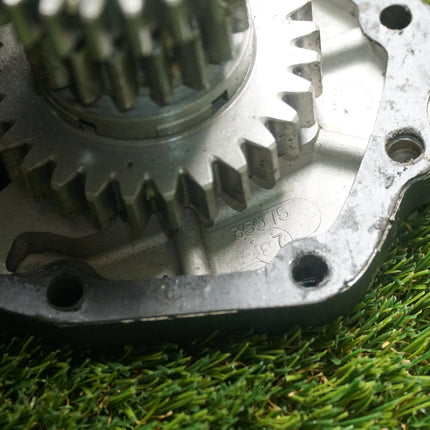

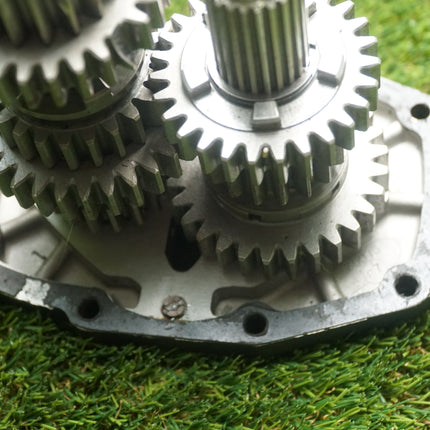

  • Salvage Value: The primary aluminum bearing housing trap door (Casting No. 35075-87) remains intact, along with some individual shafts, retaining clips, and selection sliders that can be harvested for individual replacement components.
  • Condition: For Parts / Not Working (Broken Core)

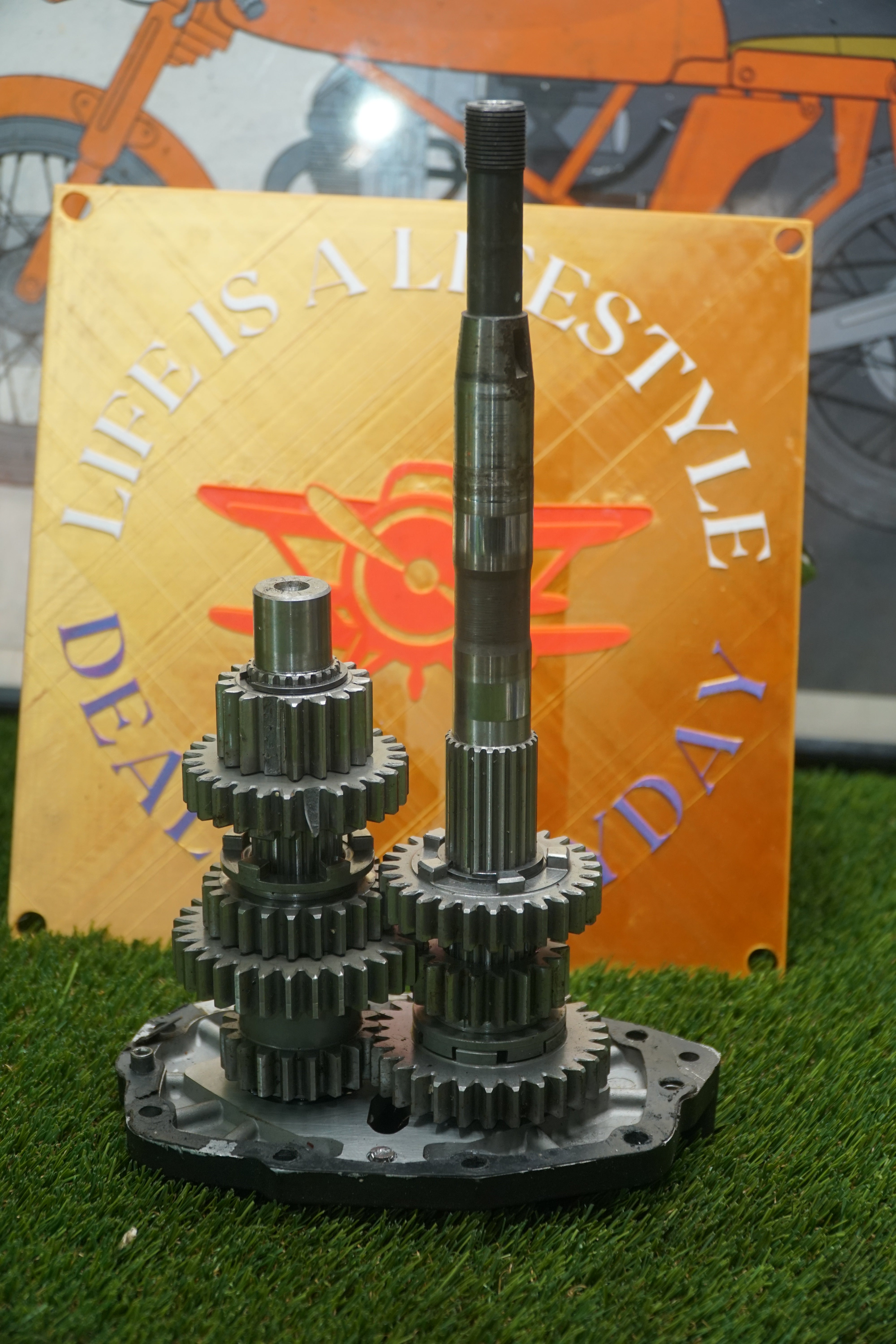

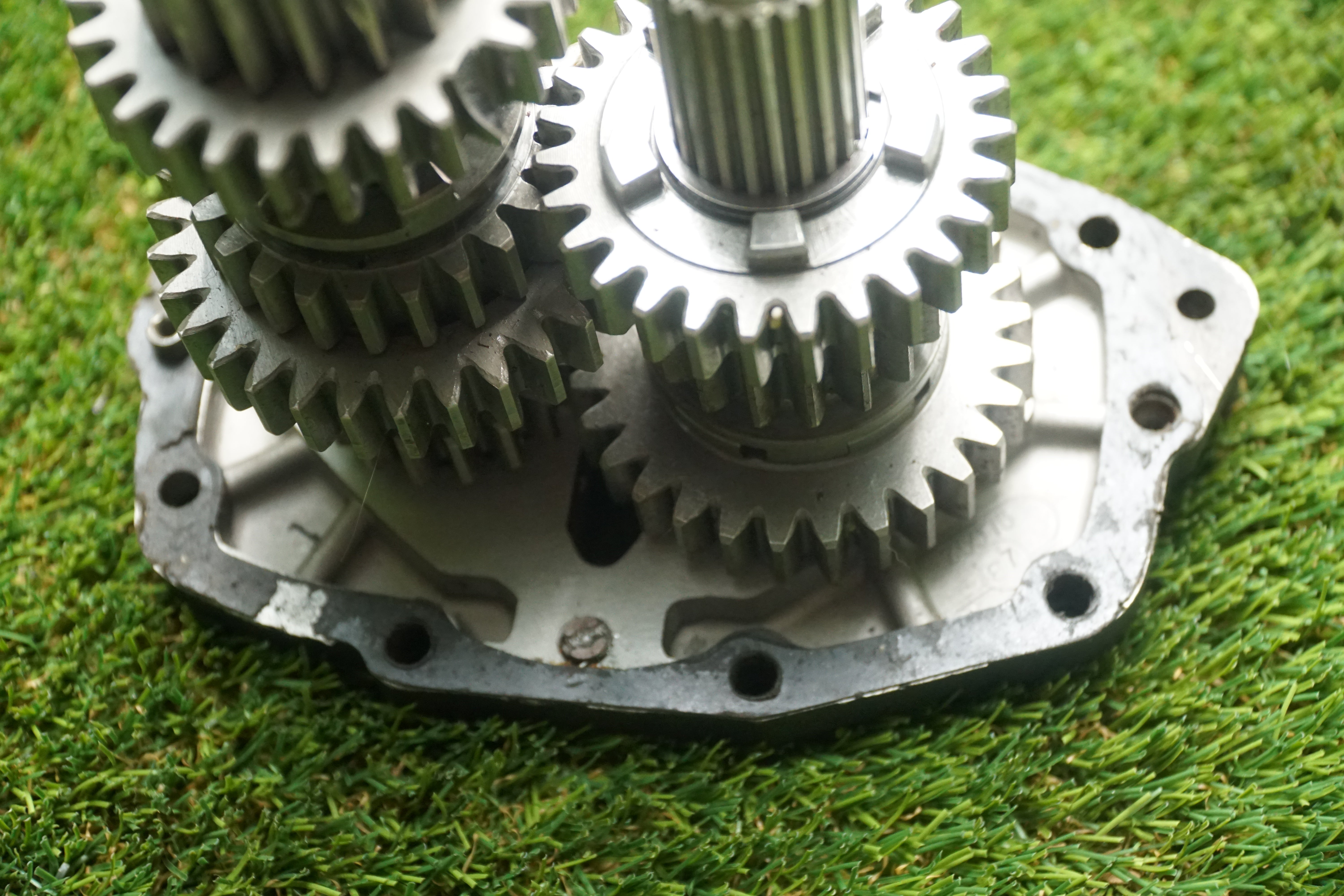

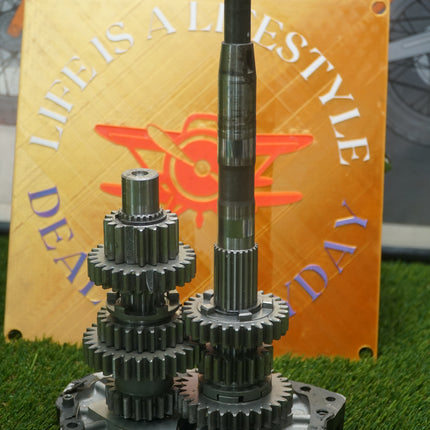

  • Inclusions: Incomplete mainshaft and countershaft cluster attached to the 35075-87 trap door as shown.
Fitment
The donor casing structural pattern matches 1987–1990 Harley-Davidson Evolution Big Twin 5-Speed Models (Softail and FXR frame layouts):
  • Softail (1987–1990): Heritage Classic, Fat Boy, Softail Standard, Custom, Springer
  • FXR Series (1987–1990): Super Glide, Low Rider, Sport Glide
Fitment Status: Salvage component core value only. Due to critical gear damage and missing assemblies, this cannot be used as a drop-in replacement unit.

Harley Evo 5 Speed Transmission Trap Door 35075-87 Parts Core Broken Gears

Product form

This is a genuine Harley-Davidson factory original OEM 5-speed transmission internal gear cluster salvage core. Sourced from a 1987–1990 Evolution... Read more

1 in stock

$60.00

      Description

      This is a genuine Harley-Davidson factory original OEM 5-speed transmission internal gear cluster salvage core. Sourced from a 1987–1990 Evolution Big Twin, this assembly is being sold strictly for parts, repair, or scrap core value.
      CRITICAL CONDITION NOTES:
      • Missing Components: The assembly is incomplete and completely missing the final drive main gear(4th gear mainshaft assembly).
      • Mechanical Damage: The visible gear teeth profiles show severe failure, including chipped, sheared, and completely broken gear teeth along the internal clusters.
      • Salvage Value: The primary aluminum bearing housing trap door (Casting No. 35075-87) remains intact, along with some individual shafts, retaining clips, and selection sliders that can be harvested for individual replacement components.
      • Condition: For Parts / Not Working (Broken Core)
      • Inclusions: Incomplete mainshaft and countershaft cluster attached to the 35075-87 trap door as shown.
      Fitment
      The donor casing structural pattern matches 1987–1990 Harley-Davidson Evolution Big Twin 5-Speed Models (Softail and FXR frame layouts):
      • Softail (1987–1990): Heritage Classic, Fat Boy, Softail Standard, Custom, Springer
      • FXR Series (1987–1990): Super Glide, Low Rider, Sport Glide
      Fitment Status: Salvage component core value only. Due to critical gear damage and missing assemblies, this cannot be used as a drop-in replacement unit.
